ARVO

COMING SOON!

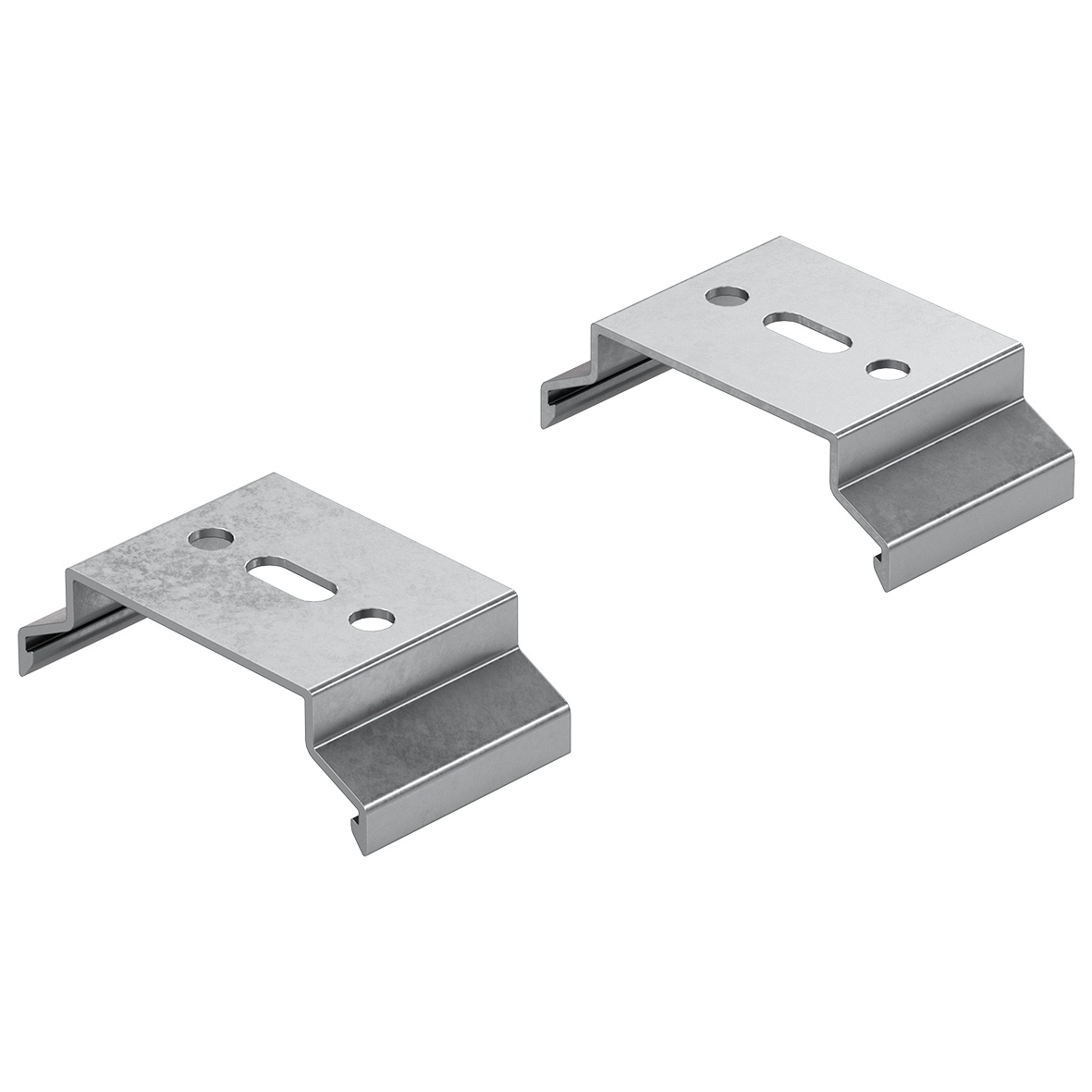

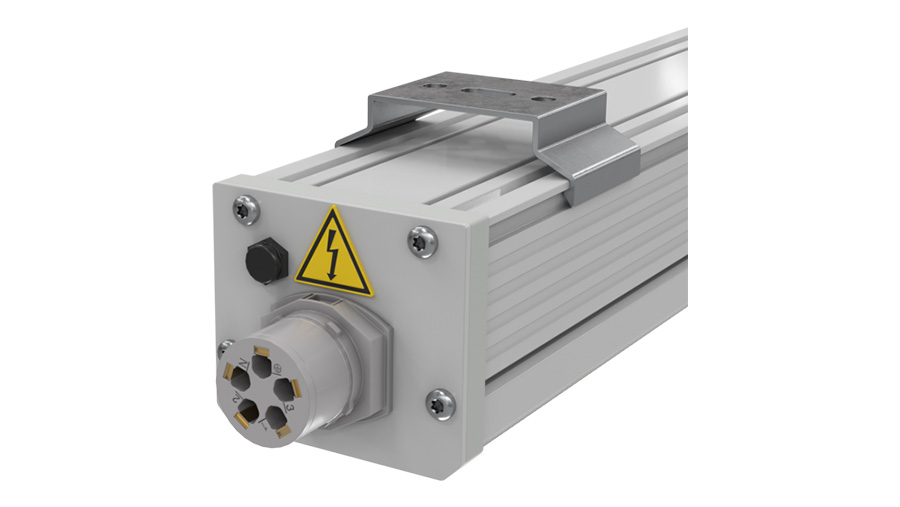

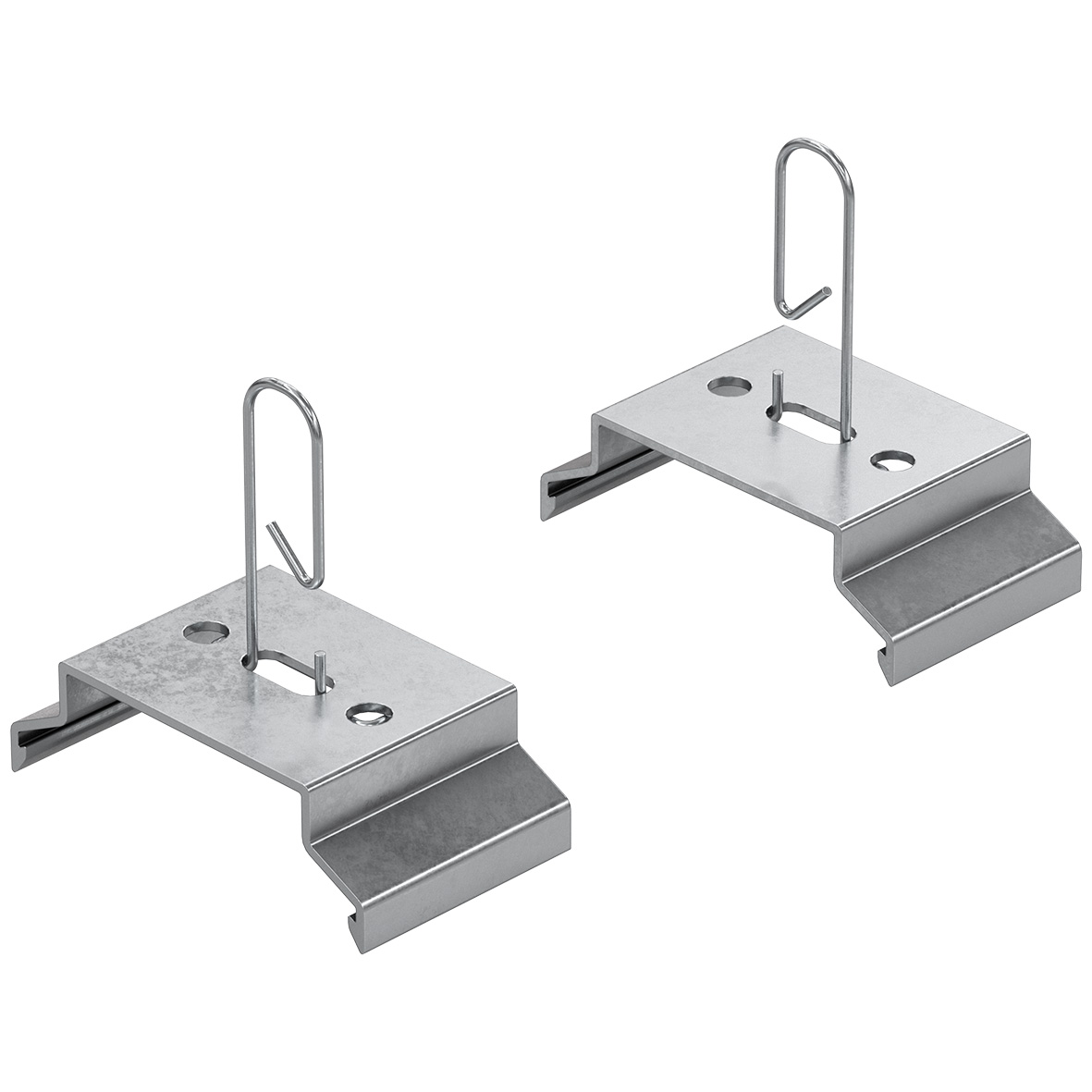

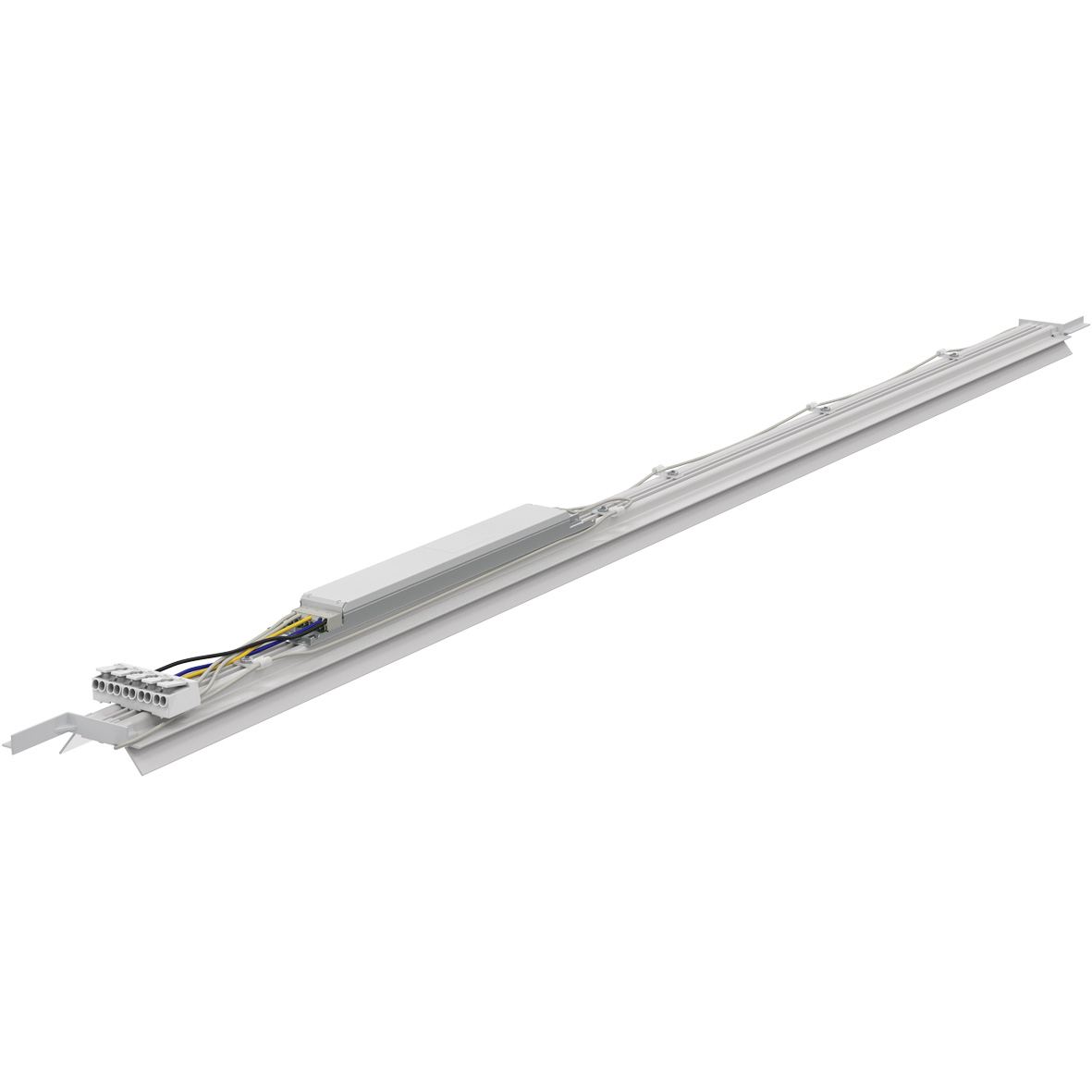

New linear luminaire for the industry. Ideal for new projects as well as for replacing obsolete T5 and T8 linear fluorescent luminaires in renovation projects. The luminaire's technology package is easily replaceable by removing the luminaire's end plate (Fit for the Future product). The body is made of anodised aluminium. Excellent glare control and uniform light thanks to the microprismatic acrylic sheet (PMMA). The luminaire is equipped with a PTFE filter. Quick and easy installation with the IPD quick connector. Mounting brackets included.

  • Ta class: -20 °C ... +50 °C
  • Power: 34 W and 63 W
  • Luminous flux: 5500-8650 lm depending on model
  • Luminous efficacy: Up to 162 lm/W @ Ta max.
  • Light source energy class: A
  • Body material: Anodised aluminium
  • Cover material: Microprismatic acrylic (PMMA)
  • Colour temperature: 4000K
  • Colour rendering index: CRI 80
  • MacAdam value: 3 SDCM
  • Class D: Yes
  • Enclosure class: IP65
  • Light distribution: Wide
  • Body length: 1200 mm and 1500 mm
  • Filter: PTFE
  • Multiple connection options:
    • Through-wiring 5x2.5mm² with IPD panel connector, 3 phase, ON/OFF
    • Through-wiring 5x2.5mm² with IPD panel connector, 1 phase, DALI-2
    • IPD panel connector 3x2.5mm², ON/OFF
    • IPD panel connector 5x2.5mm², DALI-2
